The META V5 is our vision of MTB. It's a bike that's easy to handle, balanced, technically sound, lively, playful and pedal-efficient thanks to the new Virtual Contact System (VCS) kinematics and flip-chip.
Colour
Pyrite Grey - Shiny Finish
Frame
META V5, UDH, 150 mm travel
29'', Alloy 6066, triple butted tubes, T4, T6

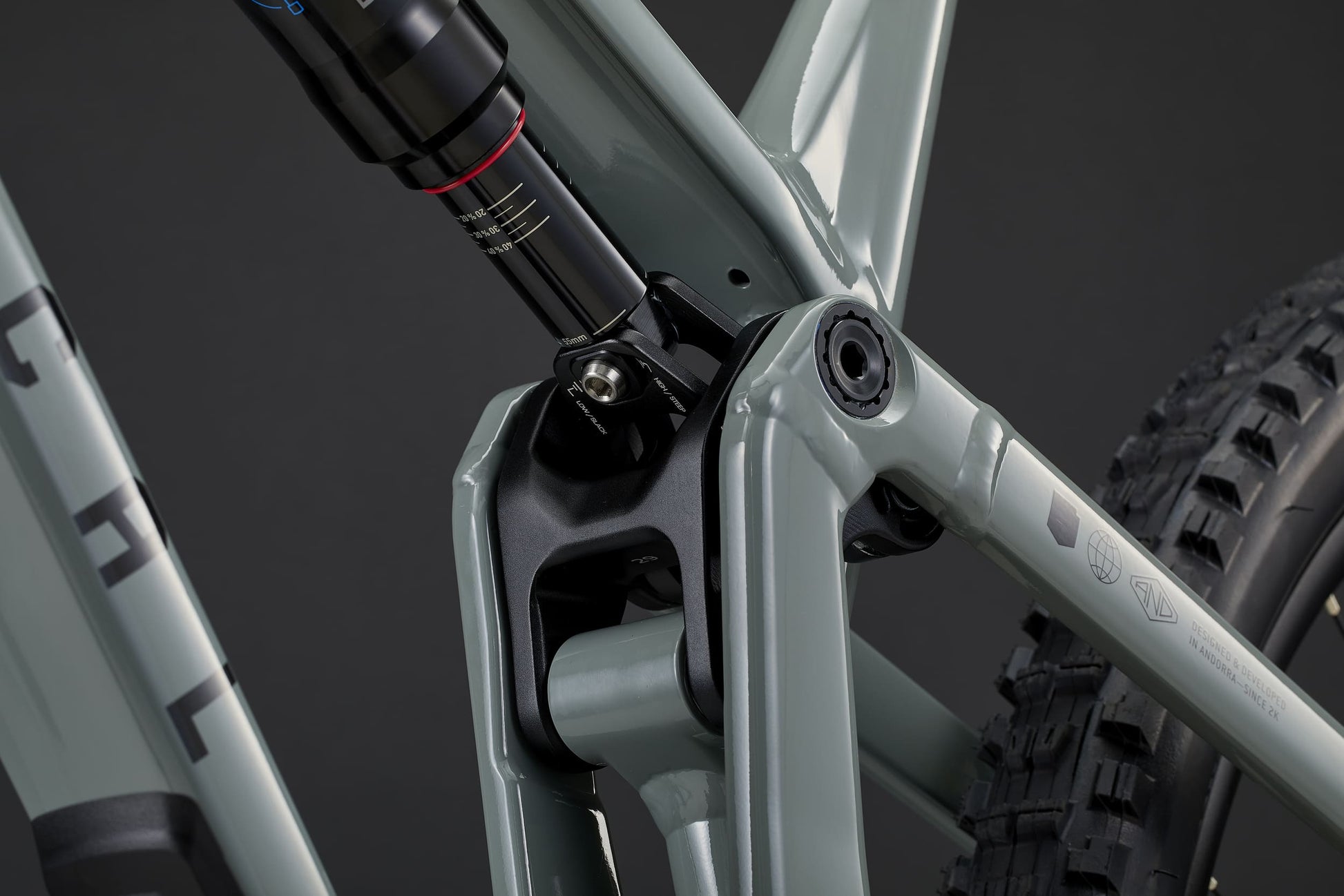

Shock
ROCKSHOX Deluxe Select +
210 x 55 mm, RT damper, DebonAir, rebound, 2 position compression, 0 Token neg. 3 Tokens pos.
Fork
ROCKSHOX Lyrik Base, 160 mm travel
29", Rush RC damper, DebonAir+, LSC, rebound, Boost (15 x 110 mm), 44 mm offset, 0 Token
Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings
Stem
RIDE ALPHA 40
40 mm extension, 31,8 mm
Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips
ODI Longneck
Soft compound, single clamp, black
Brakes
SRAM DB8, 4 pistons, steel-backed organic pads, MatchMaker compatible
Rotors: SRAM G2 CleanSweep 200 mm, 6 holes
Shifters
SRAM NX Eagle
12s
Chain guide
RIDE ALPHA
32t-34t
REAR DERAILLEUR
SRAM NX Eagle
12s
Bottom bracket
SRAM DUB WIDE
Pressfit
Crankset
SRAM X1 1000 Eagle, 170 mm crank arms, DUB, Boost
Chainring: SRAM Eagle, 32t, Narrow-Wide
Chain
SRAM NX Eagle
12s
Cassette
SRAM PG-1210
12s, 11-50t
Rims
SPANK SPIKE RACE 33
29'', 32h, 28 mm inner width
Hubs
Rear: FORMULA DCL-348A - Front: FORMULA DC-711
Rear: 32h, 12 x 148 mm, sealed bearings, SHIMANO Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings
Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black
Tyres
Rear: MAXXIS DHR II - Front: MAXXIS DHR II
Rear: 29"x2.40" WT, EXO, Dual, Tubeless Ready - Front: 29"x2.40" WT, EXO, 3C MaxxGrip, Tubeless Ready
Seat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote
Saddle
SDG Bel Air V3
140 mm width, steel rails
Weight
15 kg / 35.05 lb
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Pedals included
No
Accessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
*Please note that bike specs are subject to change without prior notice.
