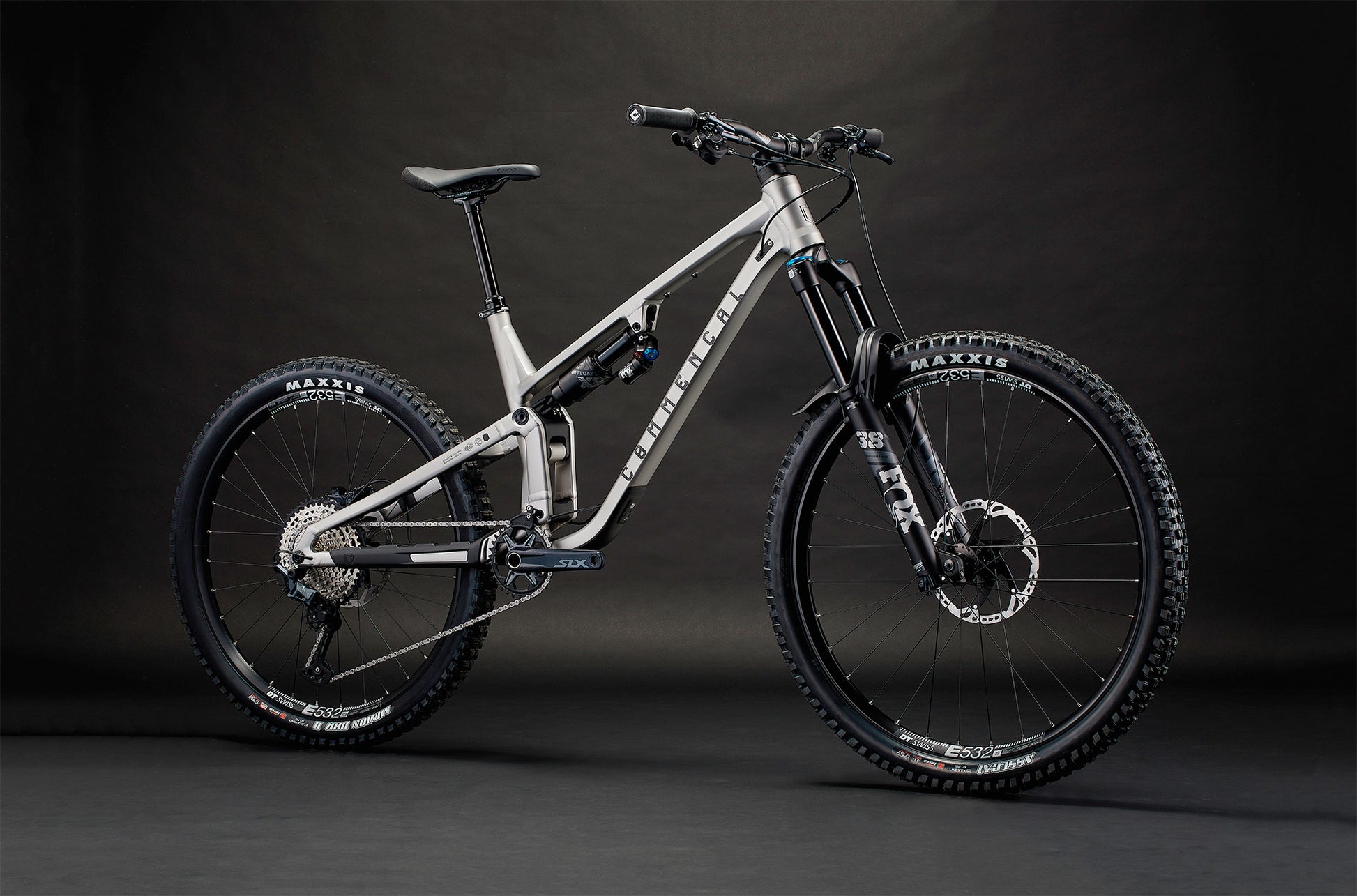

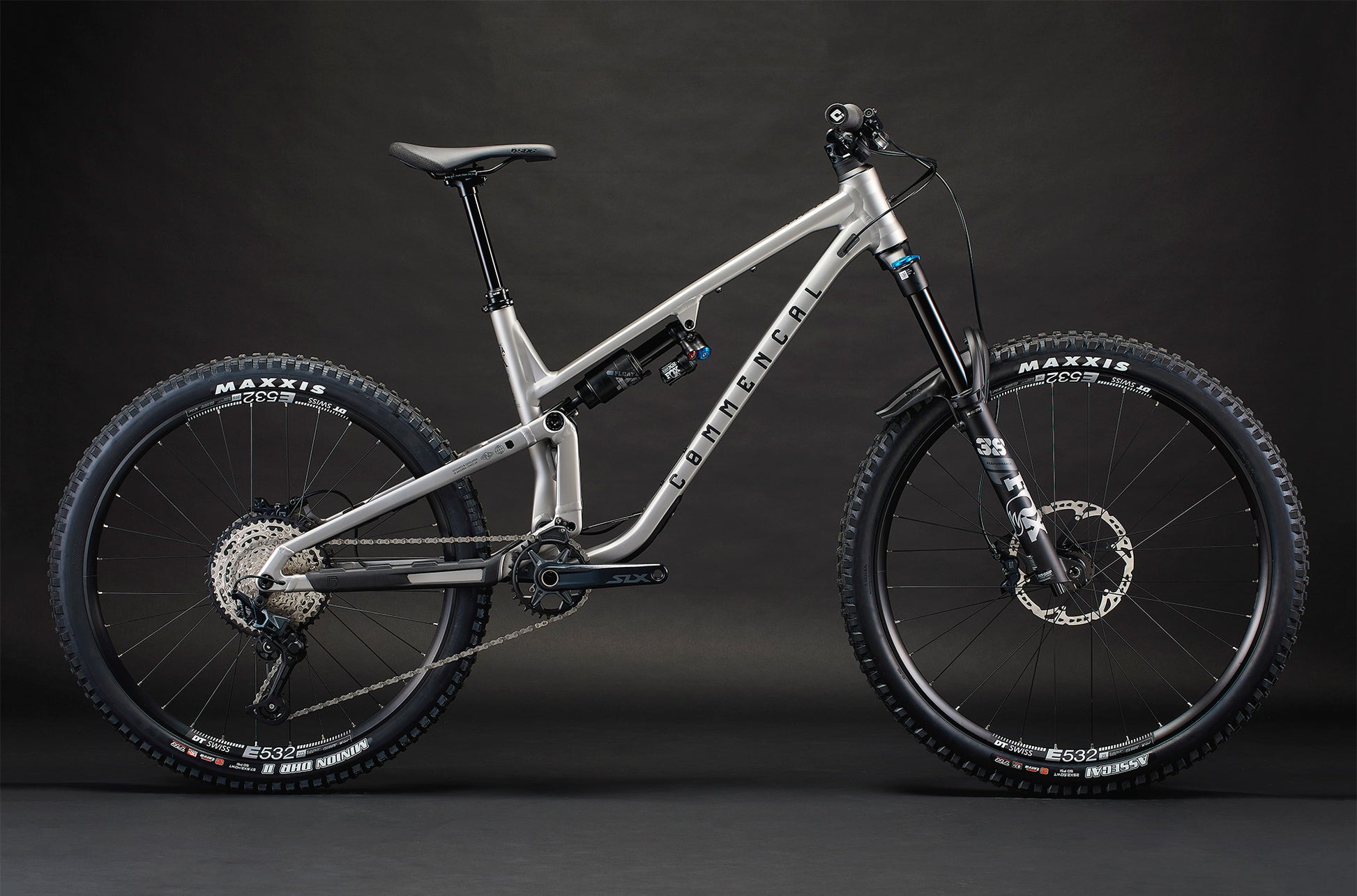

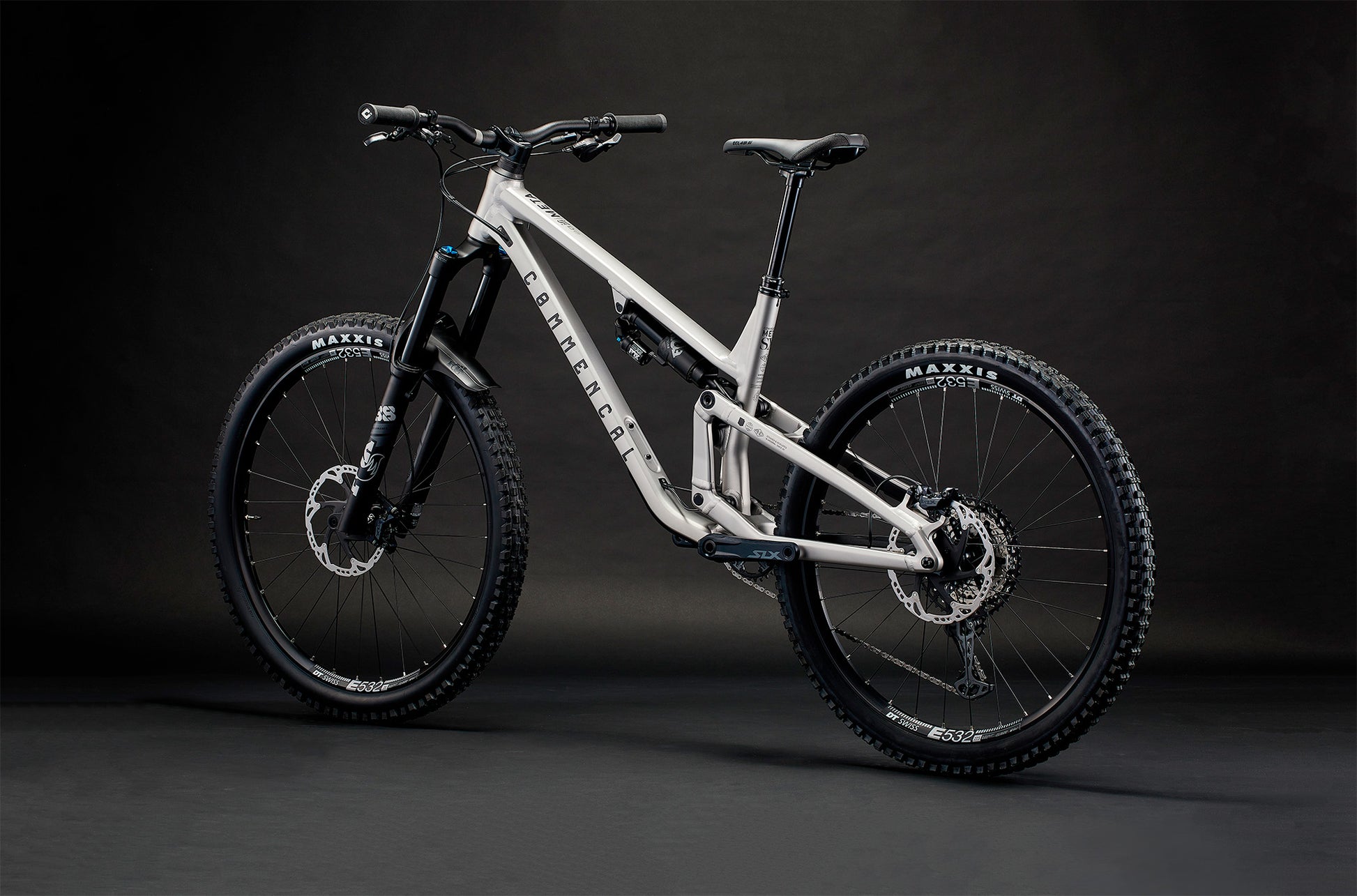

Commencal META SX V5 Essential - Medium

The META SX V5 is driven before its ridden. The 165mm of travel is combined with the new Virtual Contact System (VCS) kinematics to deliver unparalleled maneuverability and fun on the trails!

Colour
Silver Matte Finish

Frame
META SX V5, UDH, 165 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6

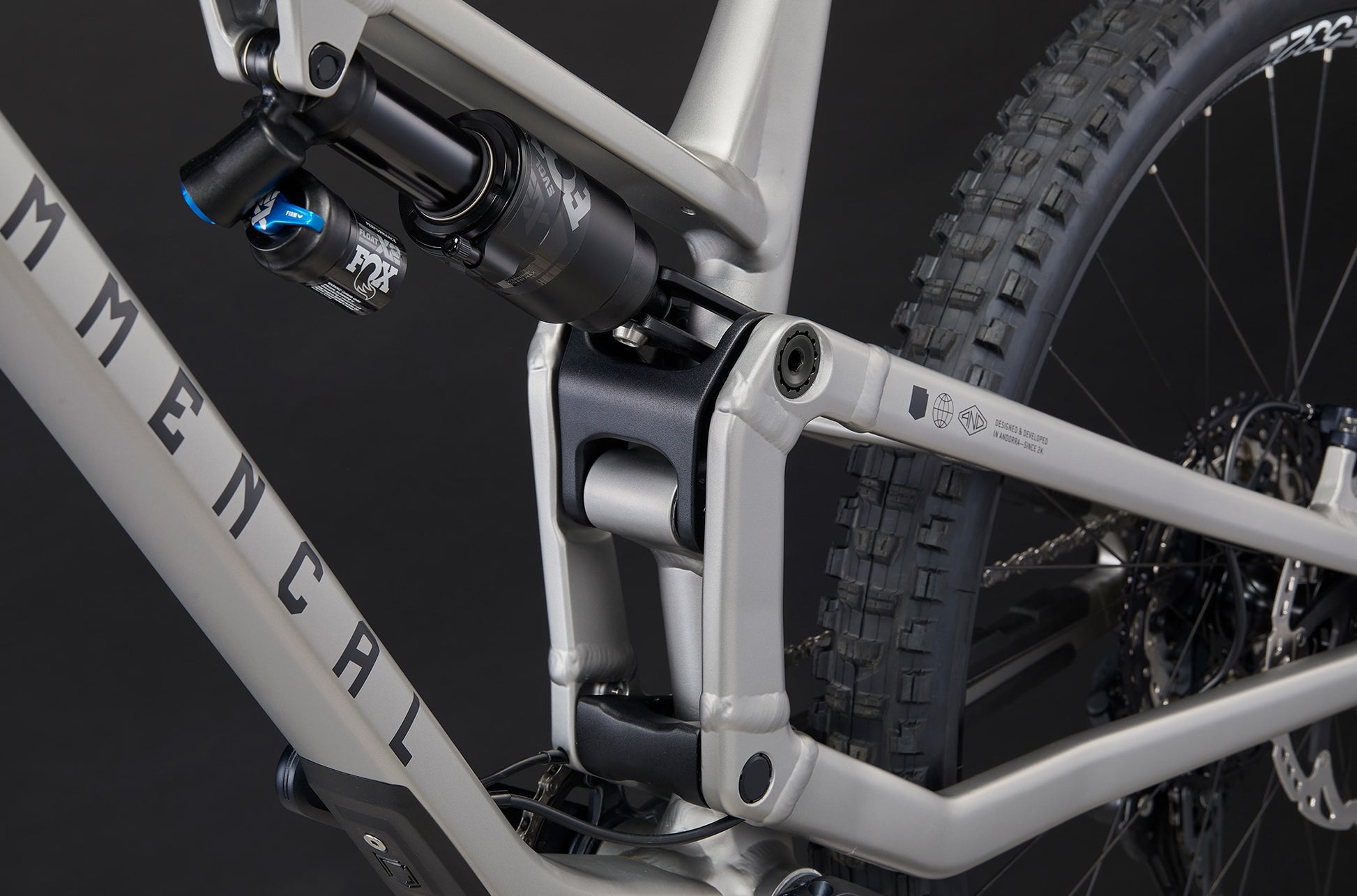

Shock
FOX Float X2 Performance
230 x 65 mm, 2-pos lever, LSC, LSR, 0.3 spacer x2

Fork
FOX 38 Performance, 170 mm travel
29", Fit Grip damper, 3 positions, compression, rebound, Boost (15 x 110 mm), 44 mm offset, 2 spacers

Headset
ACROS ZS56 / ZS56
Alloy cups, sealed bearings

Stem
RIDE ALPHA 40
40 mm extension, 31,8 mm

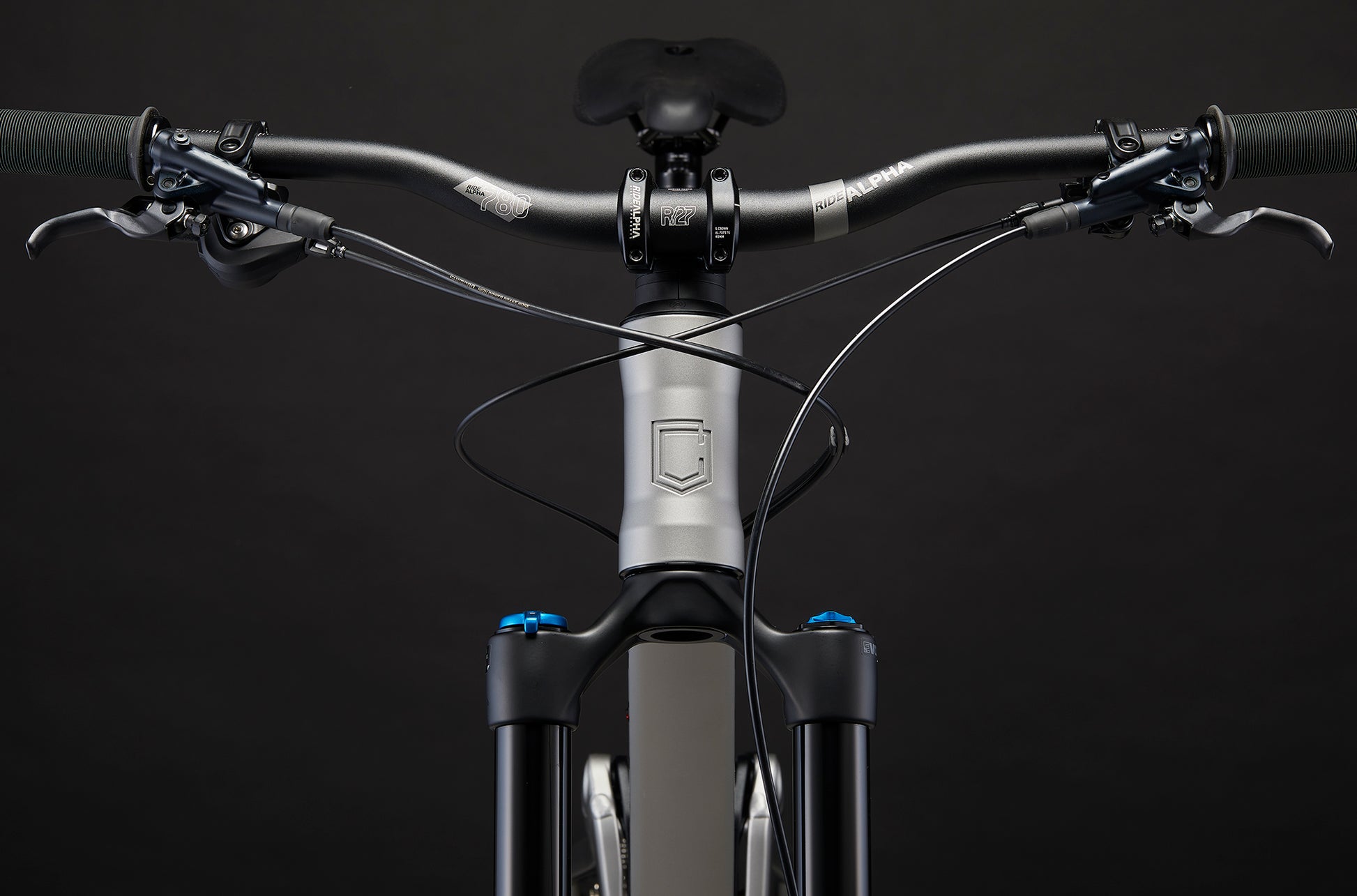

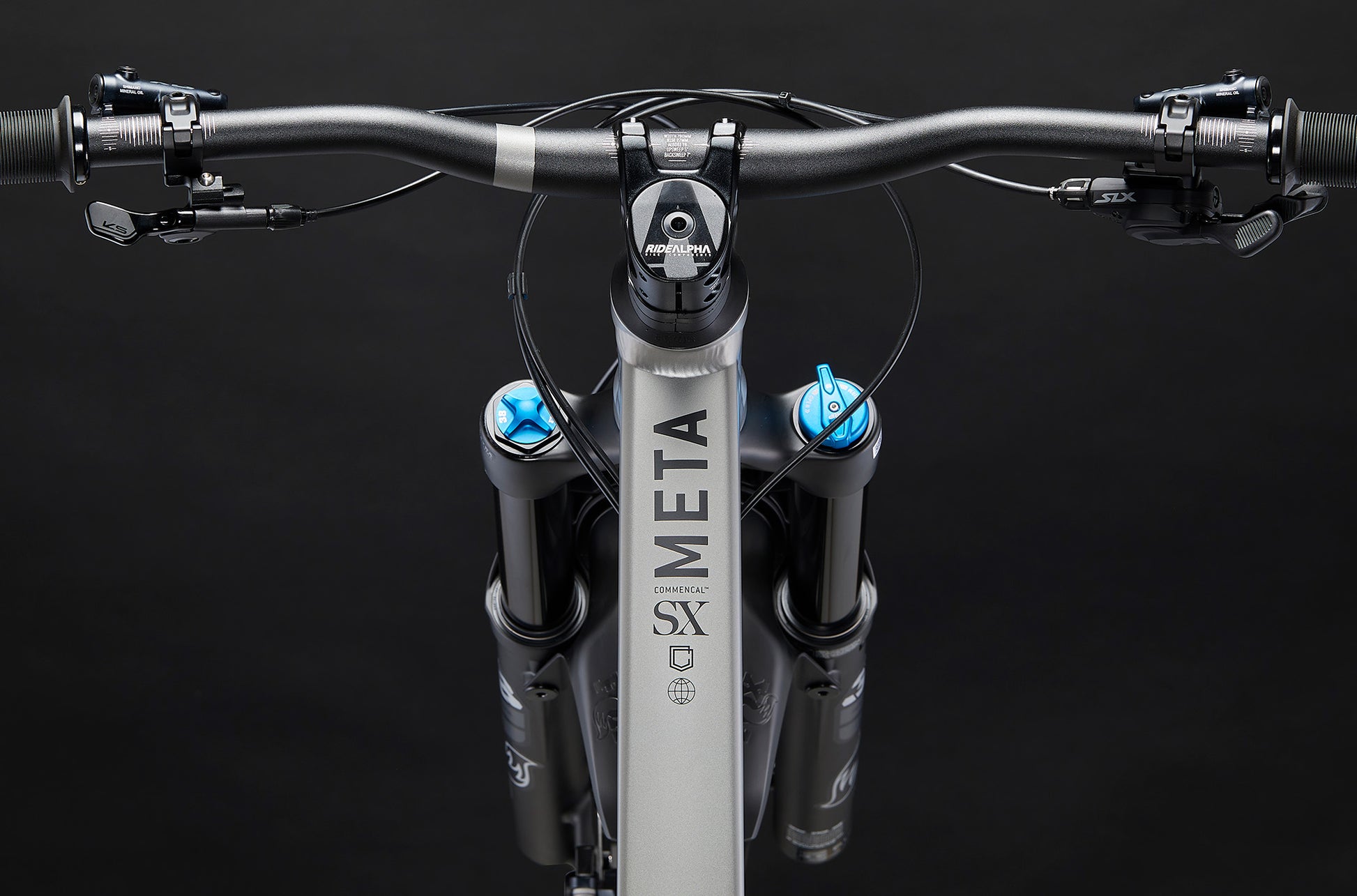

Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

Grips
ODI Longneck
Soft compound, single clamp, black

Brakes
SHIMANO SLX, 4 pistons, resin pads, I-Spec EV compatible
Rotors: SHIMANO SM-RT76 203 mm, 6 holes

Shifters
SHIMANO SLX
12s

Rear Derailleur
SHIMANO SLX
12s

Bottom bracket
SHIMANO BB71
Pressfit

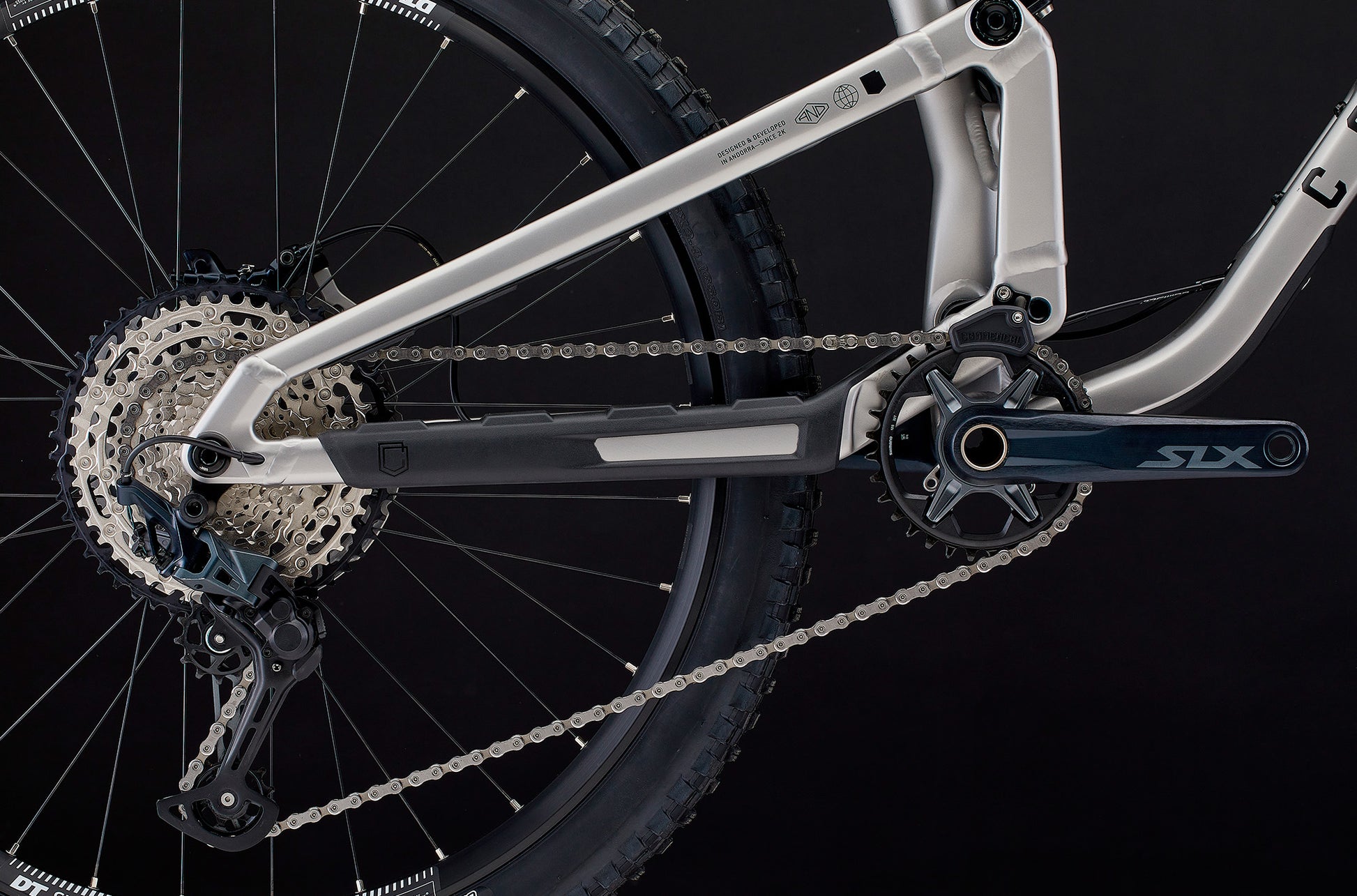

Crankset
SHIMANO SLX, 170 mm crank arms, Boost
Chainring: SHIMANO SLX, 32t, Dynamic Chain Engagement + Technology

Chain
SHIMANO SLX
12s

Cassette
SHIMANO SLX
12s, 10-51t

Rims
DT SWISS E 532
Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width

Hubs
Rear: FORMULA MSL-148A - Front: FORMULA DC-711
Rear: 32h, sealed bearings, 12 x 148 mm, Micro Spline - Front: 32h, sealed bearings, 15 x 110 mm

Spokes/nipples
SAPIM Race
J-Bend, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

Tyres
Rear: MAXXIS DHR II - Front: MAXXIS Assegai
Rear: 27.5"x2.4" WT, 3C MaxxTerra, EXO+, Tubeless Ready - Front: 29"x2.5" WT, 3C MaxxTerra, EXO, Tubeless Ready

Seat post
KS Rage-i
34.9 mm, travel: 125 mm on S, 170 mm on M/L and 190 mm on XL, SouthPaw alloy remote

Saddle
SDG Bel Air V3
140 mm width, steel rails

Weight
16.4 kg / 36.2 lbs
Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

Pedals included
No

Accessories
Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender
